CALORIQUE LTC heating cable 30 W/m self-regulating high quality outer jacket outdoor use pre-assembled with plug - 4m

CALORIQUE LTC heating cable 30 W/m self-regulating high quality outer jacket outdoor use pre-assembled with plug - 4m

SKU: 7429-004
Category: Preassembled heating cable

Type
Heating length

40,99 €

incl. 19% VAT , plus (Standard)

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

Description

Calorique pipe trace heating Rohrbegleitung2 The universal, self-regulating heating cable 30 W / m can be used in any cable length without affecting the properties or an overheating hazard. Even with a possible cable crossing, the performance of this heating cable is basically preserved. Of course, there is the additional possibility to connect with a frost protection thermostat. The heating cable is very durable - at least 25 years. areas of application

Outdoor pipes and near-surface threaded pipes
Pipes in halls and underground garages
Reheating sewage pipes in kitchens to prevent grease deposits
Heating pipes for technological processes
Warm up the root area in the greenhouse and cold frame

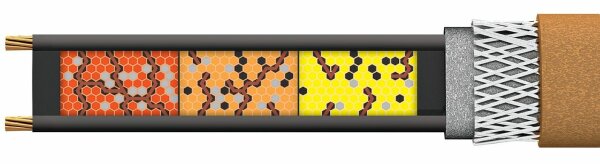

Self-regulating effect

Technical specifications

Operating voltage	220 - 240 V
Degree of protection outer jacket	IP67
Rated power at 10 ° C	30 W/m
Maximum length	80 m
Minimum bending radius	35 mm
Minimum installation temperature	-25° C
Maximum operating temperature	85° C
Effective range	-45° C … +65° C
Operating time	25 Jahre
Starting current coefficient	3,5
Measure, approx.	7 x 13 mm
Certification	CE

Waermeabgabe selbstregulierendes Kabel von Temperatur

Maximum heating cable length VS fuse

cable	voltage	start-temp	16 A	20 A	40 A
SSL16	220-240 V	10° C	104	129	130
		0° C	90	119
		-20° C	66	85
		-40° C	55	75
SSL30	220-240 V	10° C	60	80	100
		0° C	50	68
		-20° C	42	54
		-40° C	38	50

delivery variants:

1. variant

Selfreg Montage1 Selbstregulierendes-Heizkabel-Variante_1 mit Anschluss Set

We deliver the self-regulating heating cable in the ordered length with a connection set. The heating cable is easily and quickly connected to the Ölflex control cable using the connection kit. Ölflexleitung can be found in our offer as by the meter. If required, order the frost protection thermostat from our product range.

Connection set:

connector	3 St.
shrinkable tubing 2/1mm, L=37mm	1 St.
Heat shrink adhesive 12/4mm, L=77mm	1 St.
Heat shrink adhesive 18/6mm, L=144mm	1 St.
Shrink end cap with sealant	1 St.

2. variant

Wasserleitung Frostschutz konfektioniert selbstregulierendes Heizkabel Heizband

The self-regulating heating cable is supplied with integrated plug, assembled to 2 m cable. The heating can then be used immediately!

Selbstregulierendes heizkabel als Rohrbegleitheizung Frostschutz

Important note: If you need a different version or required heating cable length for plastic or metal pipes in other applications, we will be pleased to advise you.

Voltage:	220 / 240 VAC
Dimensions:	11x7 mm
Conductor cross-section:	0,51 mm²
Maximum Operating Temperature:	+65° C
UV-tolerance:	Yes
Use in potentially explosive areas:	Yes
Specific Power Consumption (at 10°C):	30 W/m
Minimal Bending Radius:	35mm
Minimum Installation Temperature:	-15°C
Certification:	CE, TÜV Nord
Maximum ambient temperature:	+85°C
Minimum installation temperature:	-15°C
Maximum section length at 0 ° C on the roof in condensation / snow:	24m
Maximum section length at 10 ° C as pipeline / use on containers:	30m
Warranty / lifetime:	15 years / min. 30 years
