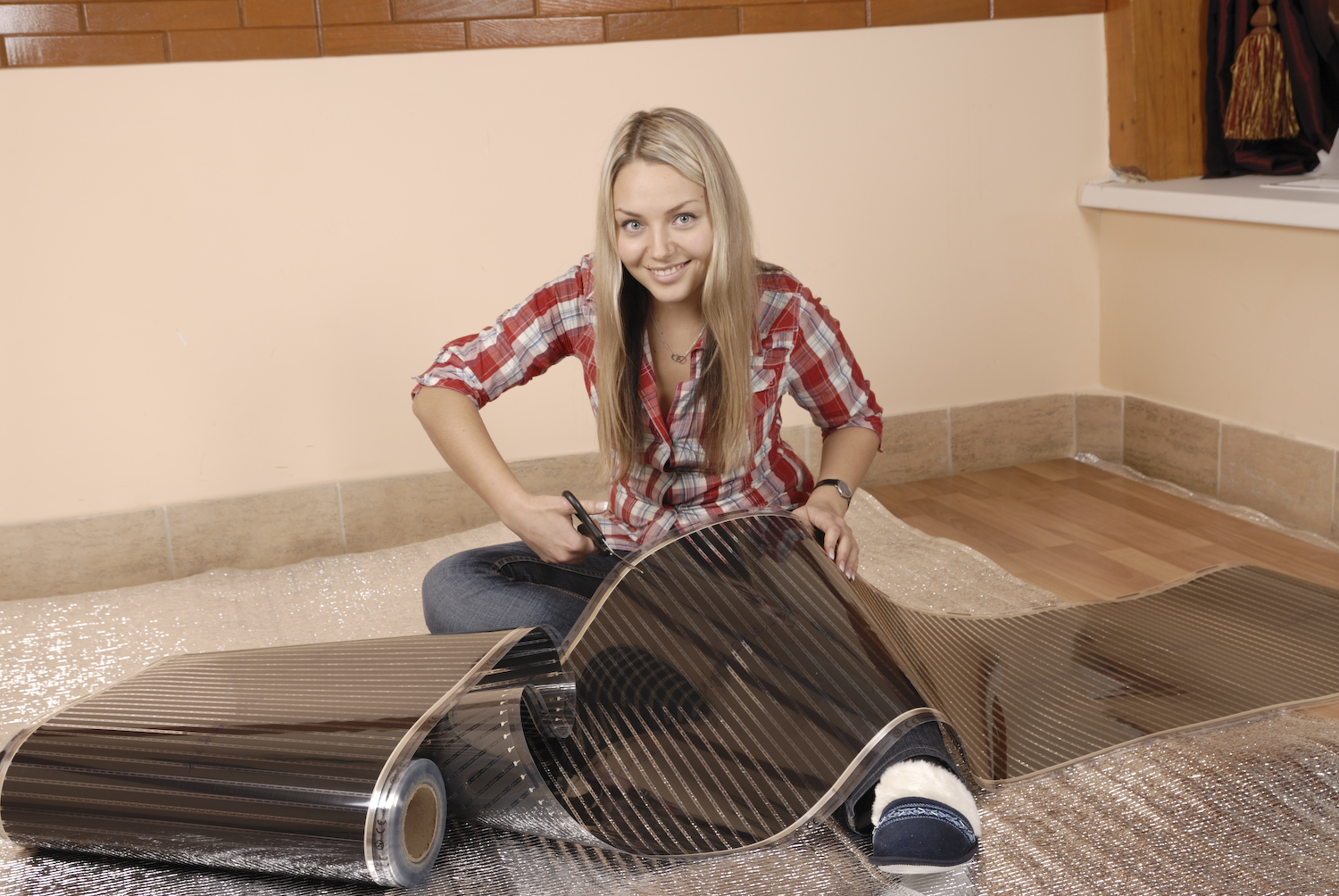

Caloriqueheating film for electric underfloor heating, ceiling heating, radiant heatingCalorique heating film consists of carbon heating elements with silver contacts and solid tinned copper bus bars. These elements are heat laminated in polyester film on both sides.

  • Voltage: 220-240 V;
  • Power density: 90 W/m²; 150 W/ m²;220 W/m²; 450W/m²;
  • Film width: 50cm ; 80cm , 100cm;
  • Distance between the heating elements: 16.7 mm (60 elements per 1m);
  • Components of heating elements: carbon paste, silver bus bars: tinned copper;
  • Maximum Temperature 85°C;
  • Area of application: electric floor heating, ceiling heating, wall heating, surface heating.



Calorique heating film was officially safety tested by the testing Institute NEMKO in a registered office in Germany with Focus on electrical installations and buildings.

According to the certificate’s underlying DIN VDE IEC / EN 60335-2-96 (Safety of electrical appliances for household and similar use – Part 2-96: particular requirements for surface heating elements - IEC 60335-2-96:2002 + A1: 2003 + Corrigendum: 2003 + A2: 2008; German version EN 60335-2-96:2002 + A1: 2004 + A2: 2009) the temperature rise tests were carried out with wooden floor. The heating remained far below the limits.

Technical Data Radiant Heating Film Calorique
Article Width
 cm
Heat Density
 W/m²
Max Panel Length
m
Floor Type Installation
US50-150 50 150 12 Under all types of floor with temperature restriction Comfort, Main Heating, Mirror Defogger
US80-150 80 150 15 Under all types of floor with temperature restriction Comfort, Main Heating, Mirror Defogger
US100-150 100 150 11 Under all types of floor with temperature restriction Comfort, Main Heating, Mirror Defogger
US50-90 50 90 22 Under all types of floor with temperature restriction Comfort Heating
Main Heating Passive House
US80-90 80 90 25 Under all types of floor with temperature restriction Comfort Heating
Main Heating Passive House
US100-90 100 90 20 Under all types of floor with temperature restriction Comfort Heating
Main Heating Passive House
US50-220 50 220 9 Under all types of floor with temperature restriction Underfloor, Ceiling, Wall
Main Heating
US80-220 80 220 10 Under all types of floor with temperature restriction Underfloor, Ceiling, Wall
Main Heating
US100-220 100 220 8 Under all types of floor with temperature restriction Underfloor, Ceiling, Wall
Main Heating

link to shop
